How to change the SUPER POWER FLOW Filter (4 steps)

  • 1. Take the filter out of the frame.

    Release the frame bolt first and take out the filter from the frame.

  • 2. Change the filter.

    First take the used filterout. Then put the new filter into the frame as shownon the photo by pushing it hardand set it for the center hol.

  • 3. Be careful not to make a gap.

    Set the filter tight to the frame. Do not try it a once but put it by step by step carefully. Try not to make any wrinkle.

  • 4. Finally set the bolt.

    Put the filter in the frame tightly and set the bolt firmly. Make sure again there is no gap between the filter and the frame.

  •

Approximate change period:
Dry type: after 6 to 12 months, or 6,000km to 10,000km
Wet type: after 3 to 6 months, or 3,000km to 5,000km







Filter element for Super Hybrid Filter

Sport filter that is replaceable!

  • 70017-AK001 S size (143×256) [Dry 3 layers]

  • 70017-AK002 M size (232×249) [Dry 3 layers]

  • 70017-AK003 L size (197×345) [Dry 3 layers]

    How to use

  • 1. Remove Super Hybrid Filter from the vehicle.
    2. Disassemble frame of Super Hybrid Filter and remove the old filter.
    3. Cut the Filter Element (This item). (See the instruction on the left.)

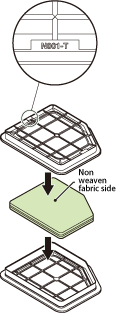

    4. Attach the cut new filter to the frame.
    Face non weaven fabric side towards the side of frame that has the carved seal [OOOO-T]. Ensure that there is no space between them
    5. Assemble frames.
    6. Install the filter to the vehicle.

  • How to cut the filter

  • a. The instruction paper has the cutting line. Check the cutting shape by checking part number of the printed instruction or comparison with the removed old filter.
    b. After confirmation of the shape, cut the instruction paper for the line.
    c. Using the instruction paper, trace the cutting line to the filter with a marker. The cutting line printed side of the instruction paper should be the side of non weaven fabric side.
    d. Cut the filter.

Product Model Engine Year Code RRP (exc VAT) Notes
Super Hybrid Replacement Filter Element (L) 197×345mm - - - 70017-AK003 £25.00 Vehicle Info
Super Hybrid Replacement Filter Element (M) 232×249mm - - - 70017-AK002 £18.00 Vehicle Info
Super Hybrid Replacement Filter Element (S) 143×256mm - - - 70017-AK001 £14.50 Vehicle Info
Super Power Flow Replacement Filter Element 150mm Dry 3 Layer Green - - - 70001-AK021 £14.50 Vehicle Info
Super Power Flow Replacement Filter Element 150mm Wet 2 Layer Red - - - 70001-AK031 £14.50 Vehicle Info
Super Power Flow Replacement Filter Element 150mm Wet 2 Layer Yellow - - - 1504-SA012 £14.50 Vehicle Info
Super Power Flow Replacement Filter Element 200mm Dry 3 Layer Green - - - 70001-AK022 £18.00 Vehicle Info
Super Power Flow Replacement Filter Element 200mm Wet 2 Layer Red - - - 70001-AK032 £18.00 Vehicle Info
Super Power Flow Replacement Filter Element 200mm Wet 2 Layer Yellow - - - 1504-SA013 £18.00 Vehicle Info

All prices are RRP and exclude VAT.
